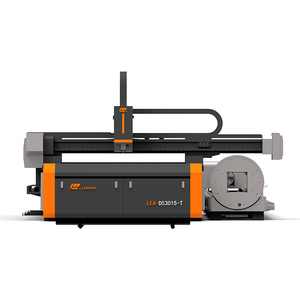

Quality 3000W CNC Tube Fiber Laser Cutting Machine New 6m Metal Pipe Laser Head for Raytools AI/LAS DST 13% Water Supports PLT
Green Laser Marking Machine 3D Crystal Internal Laser Engraving Machine for Copper Glass Ceramics FPC

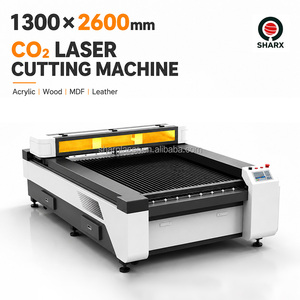

150W 1325 CO2 Laser Cutter with Ruida Control System Water-Cooled for Wood Acrylic MDF Stone Rubber Supporting DXF/PLT Formats
Custom 8-Point Magnetic Coded Reflective Positioning Markers For Handheld Laser 3D Scanning Industrial Measurement

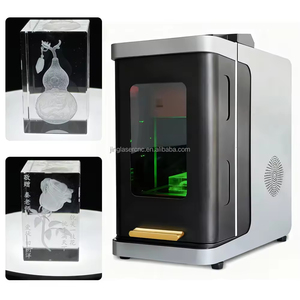

Air Cooling Green Light Laser Marking Machine Portable 2D 3D Crystal Glass Block Ball Subsurface Inner Laser Engraver
Easy-to-operate Acrylic Laser Engraving Machine, 60/80/100/130/150/180/200W, 6040/9060/1390, CO2 Laser Engraver and Cutter
Industrial Fiber Laser Marking and Engraving Machine Split-type 0.001mm Ultra-High Precision Color Marking for All Metals

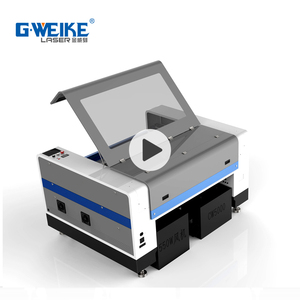

G.WEIKE 150 Watts 400 Watt Acrylic CO2 Laser Cutting Machine Industrial Metal & Non-Metal Laser Cutter
Technical Whitepaper: Engineering Next-Generation Jewelry Laser Engravers
An authoritative analysis of optical physics, thermal dynamics, and mechanical engineering in precious metal manufacturing.
MOPA Fiber Pulse Control
Variable pulse duration (2ns to 500ns) enables thermal tuning, allowing non-destructive black annealing, micro-hallmarking, and deep relief carving on pure 24K gold, silver, and platinum without micro-cracking.
355nm UV Cold Laser Optics
Ultraviolet photon processing breaks molecular bonds rather than utilizing thermal ablation. Essential for delicate jewelry combining organic gemstones, pearls, heat-sensitive enamel, and ultra-thin foil bands.
Dynamic 3-Axis Galvo Focusing
Auto-focusing 3D galvanometric scanners continuously adjust focal distance across curved ring inner-diameters, domed bangles, and irregular custom pendants, maintaining beam density down to 10µm spot sizes.
1. The Evolution of Jewelry Manufacturing: Thermal Dynamics & Beam Quality Factors
The global jewelry manufacturing sector is undergoing a rapid transition from conventional mechanical engraving, rotary carving, and chemical etching toward high-precision industrial laser processing. Modern jewelry production demands uncompromised precision, zero material loss on high-value precious metals (such as Gold 999, Platinum 950, Sterling Silver 925, and Titanium alloys), and absolute repeatability for legal hallmarking, serial numbers, and micro-artwork.
As an established OEM/ODM laser equipment manufacturer operating under strict ISO 9001 and CE standards, our engineering framework focuses on optimizing the Beam Quality Factor ($M^2 < 1.3$). Maintaining a diffraction-limited laser beam is paramount when micro-engraving jewelry items with kerf widths as narrow as 0.01mm. Standard fiber lasers frequently cause excessive Heat-Affected Zones (HAZ), leading to micro-splattering of molten gold, burnt edge profiles, and expensive post-processing polishing requirements that remove measurable precious metal weight.
OEM/ODM Technical Insight: Utilizing Master Oscillator Power Amplifier (MOPA) fiber laser architecture allows independent control over pulse frequency (1 kHz to 4000 kHz) and pulse width. By shortening pulse duration down to 2–4 nanoseconds, thermal transfer to surrounding precious metal is minimized, achieving clean, dark, contrast-rich mark profiles without physical metal loss or localized structural deformation.
2. OEM/ODM Factory Customization Architecture for Global Distributors
Industrial jewelry brand owners, OEM service centers, and high-volume manufacturing facilities require tailor-made laser integration rather than standardized off-the-shelf equipment. Our manufacturing plant provides deep white-label (OEM) and custom architectural (ODM) engineering capabilities across four key operational axes:
- Rotary Axis Kinematics: Custom high-precision pneumatic and stepper-driven rotary fixtures engineered for internal and external ring marking, bangle engraving, and continuous 360-degree cylinder cutting.
- CCD Machine Vision Integration: High-resolution coaxial camera alignment systems that automatically detect part geometry, orientation, and surface topography, executing automatic alignment for multi-part batch trays without manual jig positioning.
- Enclosure Safety & Ergonomics: CDRH Class 1 fully enclosed workstation designs equipped with interlocked safety glass, integrated dual-stage HEPA fume extraction interfaces to recover precious metal dust, and compact footprints optimized for retail and factory environments.
- Software SDK & Industrial Protocol Compatibility: Native software integration supporting PLT, DXF, AI, SVG, and raster formats, alongside customized API endpoints for automated ERP/MES integration in centralized jewelry manufacturing lines.
3. Future Procurement Trends in Jewelry Laser Engraving Machinery
Global procurement metrics show significant shifts in how jewelry enterprise buyers select machinery suppliers. Procurement teams are moving away from unbranded low-cost assemblers toward certified OEM/ODM manufacturers capable of delivering verifiable total cost of ownership (TCO) advantages:
A. Demand for Multi-Wavelength Hybrid Workstations: Modern jewelry design frequently incorporates multi-material assemblies—such as 18K gold ring bands set with synthetic resin, wood inlay, glass elements, or heat-sensitive gemstones. Procuring single-wavelength fiber systems limits processing capability. The market is shifting toward dual-source hybrid workstations combining 1064nm MOPA fiber lasers with 355nm UV cold lasers within a single chassis.
B. Sub-Micron Traceability & Legal Hallmarking Compliance: Regulatory bodies across North America, Europe, and Asia now enforce stringent hallmarking regulations for gold and silver purity verification. Laser engravers must generate anti-counterfeiting micro-QR codes and national hallmarks under 0.5mm x 0.5mm without distortion, requiring thermal stability control systems within the laser head itself.
C. Automated Material Recovery Systems: Gold and platinum dust generated during deep relief engraving represents direct financial loss. Next-generation OEM laser machines integrate specialized particulate vacuum filtration modules designed to capture 99.7% of vaporized metal particles for recycling and refining.
Key Technological Trends Shaping Industrial Jewelry Manufacturing
How cutting-edge laser innovations are driving throughput, reducing waste, and unlocking new aesthetic possibilities.
Femtosecond & Picosecond Transition
Ultra-short pulse lasers deliver gigawatt peak power with zero thermal footprint. Cold ablation allows glass, diamond, and precious alloy engraving without structural heat stressing.
AI-Powered Automated Inspection
Integrated vision algorithms analyze ring curvature in real time, auto-scaling artwork to neutralize optical distortion on highly polished spherical surfaces.
Global Modular Supply Chain Integration
OEM chassis designs utilizing standardized optical components (Raycus, MAX, IPG laser sources; Sino-Galvo scan heads) ensure worldwide spare parts availability and minimal downtime.
Why Partner With Our OEM/ODM Manufacturing Facility
Direct factory engineering, rigorous optical quality assurance, and comprehensive international support network.
ISO 9001 & CE Certified Assembly
Every laser unit undergoes a rigorous 72-hour continuous power stability burn-in test, interferometer beam alignment, and electrical safety validation prior to export dispatch.
Full OEM/ODM Branding & Housing
From custom sheet metal chassis powder-coating and localized touch-screen UI branding to proprietary software configuration, we deliver turnkey market-ready products.
Direct Factory Technical Support
Access our optical application engineering team directly for material testing, parameter optimization, custom fixture design, and 24/7 global remote diagnostic support.
Frequently Asked Questions (FAQ) for Global Procurement
Clear, definitive answers to essential technical, operational, and commercial purchasing questions.
MOPA Fiber lasers (1064nm) are the industry standard for precious metals (Gold, Silver, Platinum, Brass, Titanium). They excel at deep engraving, high-contrast hallmarking, and ring inner diameter cutting. UV Cold lasers (355nm) are recommended when processing heat-sensitive materials, delicate gemstones, pearls, or multi-material hybrid jewelry where thermal expansion must be completely avoided.
For standard equipment configurations, lead times are 7–10 business days. Custom OEM/ODM orders featuring specialized chassis paint, logo screen printing, software customization, or specialized rotary integration typically require 15–25 business days. Our factory supports flexible MOQ options starting at 1 unit for evaluation samples.
Our OEM machines feature optional closed-loop vacuum filtration attachments specifically engineered with high-density particulate collection filters. Vaporized and micro-ablated precious metal dust is captured within an isolated collection canister, allowing jewelry factories to easily refine and recover up to 99.7% of ablated material.
Yes. By equipping our machines with dynamic 3-axis galvo scan heads and high-precision motorized rotary drive units, the laser automatically maintains precise focal plane tracking across concave inner ring walls, convex outer bands, and domed bracelets without requiring manual height adjustment.
All machines manufactured in our factory strictly comply with CE machinery directives, ISO 9001 quality management systems, FDA CDRH Class 1 or Class 4 laser safety protocols, and RoHS environmental standards. Comprehensive compliance certification documents are provided with every shipment.
