Technical Mastery
Pulse Tuning
2ns to 500ns variability
- Zero thermal distortion on thin gauge metals
- Corrosion-free dark black annealing on 316 stainless
- High-frequency (up to 4000kHz) plastic foaming
UK OEM Manufacturer · ISO 9001 Accredited
MOPA Fiber Laser Marking Machine Engineering Guide
3D Standard
Dynamic Galvo
3-Axis step-less focal control
- Mark multi-tiered surfaces without focal adjustment
- Uniform barcode intensity over cylinders & spheres
- Eliminate mechanical Z-stage indexed latency
Smart Industry
Automation Ready
Inline serialization & cobots
- Seamless OPC UA / Ethernet/IP network integration
- Dynamic Data Matrix generation from SQL/ERP
- Continuous 24/7 unattended production line output
*10-Year Diamond Cover available in the UK. International buyers backed by 3–5 year warranties across 46 countries via certified distributor hubs.
Deploying MOPA Lasers to Tier-1 Manufacturers Globally
Technical Deep Dive
The Engineering & Procurement Architecture of MOPA Fiber Laser Marking Machines
Modern industrial supply chains demand permanent, ultra-high-resolution direct part marking (DPM) for UDI medical device mandates, AS9100 aerospace component traceability, and ISO/TS 16949 automotive serialization. Traditional Q-switched fiber lasers often fall short when processing heat-sensitive polymers, thin foil metal substrates, or corrosion-critical stainless steel. The Master Oscillator Power Amplifier (MOPA) fiber laser marking machine represents a definitive technological evolution, granting process engineers precise control over laser energy delivery.
What Makes MOPA Technology Superior?
In standard Q-switched fiber lasers, pulse width (duration) is fixed—typically constrained between 80ns and 120ns—and directly tied to pulse repetition frequency (PRF). When increasing frequency to mark delicate materials, peak pulse energy drops drastically, causing incomplete surface processing. Conversely, lower frequencies generate intense thermal spikes that burn plastics or destroy the corrosion-resistant passive oxide layer of stainless steels.
A MOPA Fiber Laser Marking Machine decouples pulse duration from pulse frequency using a semiconductor seed laser modulated by an electronic driver, followed by a double-clad fiber amplifier stage. This architectural freedom allows operators to dynamically adjust pulse widths from 2ns to 500ns and frequencies from 1kHz to 4000kHz independently.
Key Advantages of Variable Pulse Duration
By modulating the pulse width down to sub-nanosecond levels, peak power can be delivered in sharp, controlled bursts without accumulating collateral heat within the Heat-Affected Zone (HAZ). This grants significant processing advantages:
- Corrosion-Free Dark Annealing: Form deep black optical oxide layers on surgical stainless steel without compromising rust resistance.
- High-Contrast Plastic Foaming: Etch dark or white high-contrast UID codes on ABS, PEEK, Polycarbonate, and Nylon without melting or charring.
- Peeled Anodized Aluminium: Remove coating layers cleanly without damaging the underlying raw aluminum metal matrix.
- Color Marking: Generate consistent optical interference colors on titanium and stainless steel by controlling oxide film thickness.
Lotus Laser Meta Series: Recommended MOPA Fiber Laser Systems
Lotus Laser Systems engineers a complete lineup of industrial-grade MOPA fiber laser marking workstations designed at our UK headquarters in Basildon, Essex. Built upon heavy-duty mill-spec aluminum extrusions and fitted with premium German optical scanners, each workstation delivers long-term repeatability under continuous 24/7 industrial duty cycles.
Class 1 Enclosed Workstation
Meta-C 3D MOPA Fiber Laser Station
The Meta-C is our flagship industrial laser workstation equipped with an integrated 3-axis dynamic focus optical galvo head as standard. Built for high-mix, high-accuracy manufacturing environments, it allows operators to execute 3D surface laser marking across complex geometries without indexing Z-tables.
- MOPA Source: 20W / 30W / 50W / 100W
- Pulse Duration: 2ns – 500ns selectable
- Frequency Range: 1kHz – 4000kHz
- 3D Galvo Field: Up to 300mm x 300mm
- Safety Standard: Fully Certified Class 1 Enclosure
- Software: Full CAD/CAM 3D Surface Importer
High Volume Batch Processing
Meta-XY Large-Format Batch MOPA Laser
Engineered for high-volume component tray marking, data plate serialization, and dense electronic panel coding. The Meta-XY integrates high-precision motorized X-Y stepping tables with our MOPA fiber laser head, enabling seamless stepped array laser engraving across large working fields up to 600mm x 400mm.
- Travel Range: Motorized XY 600x400mm
- Optical Resolution: < 10 microns repeatable
- Vision Integration: High-speed VMM alignment camera
- Enclosure: Class 1 Pneumatic door safety lock
- Drive System: Precision ballscrew & linear guide rail
- Duty Cycle: 24/7 Continuous industrial throughput

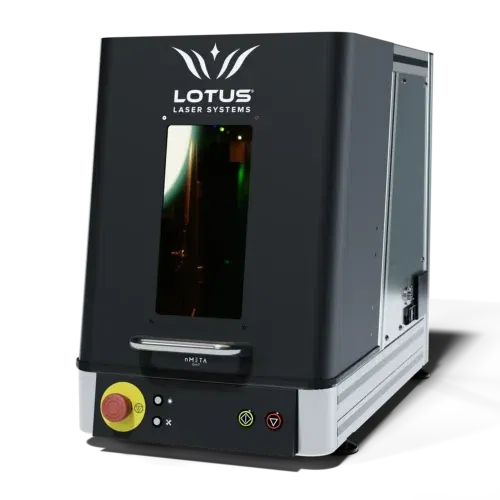

nMeta & µMeta Desktop MOPA Lasers
Compact, benchtop MOPA fiber engravers designed for research facilities, jewelry workshops, and sub-assembly electronic cells where space is at a premium. Delivers identical optical pulse control and power density as our heavy-duty floor-standing systems.
- Footprint: Compact desktop cabinet
- Source: 20W to 50W MOPA adjustable
- Air Cooled: Zero maintenance chiller requirements
Meta-i Inline Production Line MOPA Coder
Modular OEM laser marking head designed for mounting over high-speed continuous industrial conveyors, automated turntable dials, and packaging lines. Supports Mark-on-the-Fly (MOTF) encoder feedback for zero-stop manufacturing.
- Speed: Up to 500 meters/minute MOTF
- Protection: IP54 / IP65 industrial head rating
- Protocols: TCP/IP, Profinet, EtherNet/IP
MOPA Fiber Laser Technical Performance Matrix
The following table outlines performance capabilities of Lotus Meta MOPA Fiber Laser Marking Machines across various industrial substrates compared to standard laser sources:
| Target Material | Marking Process | MOPA Fiber Laser Performance | Standard Q-Switched Fiber | Thermal Effect / HAZ |
|---|---|---|---|---|
| 316 L Surgical Stainless Steel | Dark Black Annealing | Deep dark black, smooth oxide surface, passes salt spray corrosion test | Brown/grey, rough surface, damages protective passive layer | Minimal thermal dissipation; corrosion resistant |
| Titanium Grade 5 (Ti-6Al-4V) | Color Spectral Marking | Precise interference color spectrum (Blue, Gold, Magenta) with high repeatability | Inconsistent hue shift, uneven color gradient due to heat buildup | Controlled nano-oxide film creation |
| Anodized Aluminium | Black Marking / Coating Peel | Dark, high-contrast black code without piercing surface oxide layer | Evaporates coating, leaving rough exposed bare metal substrate | Zero micro-fracturing of anodized layer |
| ABS / PC Polycarbonate Plastics | Chemical Carbonization / Foaming | Crisp white/black text without surface deformation or burning | Melts plastic perimeter, yellowing, heavy toxic fume release | Controlled photochemical reaction |
| Thin Metal Foils (< 0.1mm) | Fine Detail Engraving | High-contrast mark without thermal warping, curling, or burning through | Warps substrate, creates burrs and heat buckling | Ultra-short pulse width minimizes kinetic heat |
Future Procurement & Product Development Trends in MOPA Fiber Lasers
As smart manufacturing initiatives accelerate globally under Industry 4.0 frameworks, purchasing directors and automation engineers must evaluate laser equipment not just on upfront cost, but on long-term technological adaptability. Key trends shaping the future of MOPA fiber laser marking machines include:
1. Integration of Sub-Nanosecond & Picosecond Pulse Hybrid Sources
Next-generation MOPA architectures are narrowing the gap between nanosecond fiber lasers and costly ultra-fast picosecond lasers. Future MOPA systems will feature ultra-short pulse modes below 1ns, enabling non-thermal ablation on delicate semiconductors, OLED displays, and ultra-thin foil batteries for EV manufacturing.
2. AI-Driven Machine Vision & Auto-Focusing Systems
Integrating high-resolution 2D and 3D Machine Vision Modules (VMM) directly into the optical path allows MOPA fiber lasers to instantly detect randomly oriented parts on conveyor belts, automatically inspect code quality to ISO/IEC 15415 standards, and dynamically re-target the laser beam in real time.
3. Dynamic 3D Galvo Scanning Standardization
Fixed focal length flat F-theta lenses are rapidly being replaced by dynamic 3D optical expansion galvo systems. Modern production lines require marking across stepped surfaces, slanted chamfers, and compound curves without mechanical Z-axis indexers slowing down takt time.
4. Enterprise Smart Factory Cloud Interoperability
MOPA systems are evolving into intelligent edge nodes. With native OPC UA, MQTT, and industrial Ethernet protocols, modern laser controllers communicate directly with ERP systems (SAP, Oracle) to fetch variable serialization data, stream real-time laser diode telemetry, and predict maintenance schedules automatically.
Material Application Capabilities & Lab Test Verification
At Lotus Laser Systems, our application engineers have compiled over 30 years of material interaction data. We validate every client process in our Essex laboratory prior to issuing machine recommendations.
MOPA Fiber Stainless Steel
Corrosion-Free Black Annealing
High-contrast, scannable Data Matrix codes marked on medical instruments and food-grade machinery without destroying chromium oxide protection.
Send an Inquiry
Fine Pulse MOPA Engineered Polymers
Foaming & Carbonization
Ultra-clean marking on consumer electronics, medical housings, and automotive switches without structural melting or edge flash.
Send an Inquiry
MOPA Fiber Anodized Aluminium
High-Speed Black & White Etch
Indelible serial numbers, compliance logos, and fine vector graphics marked on military equipment data plates and electronics enclosures.
Send an Inquiry
3D Dynamic Laser Complex Geometries
3-Axis Contour Tracking
Seamless distortion-free marking across 3D surfaces, cylindrical components, and stepped parts in a single automated laser scan cycle.
Send an Inquiry Why Choose Lotus Laser Systems
Engineering Excellence Made in Britain.
Lotus Laser Systems (Laserite Ltd.) is an independent, family-owned UK manufacturer with over 30 years of dedicated laser innovation. Unlike equipment resellers who rebrand imported machines, every Meta MOPA laser system is designed, assembled, optical-aligned, and certified at our headquarters in Basildon, Essex.
Send an InquiryUp to 10-Year Warranty
Backed by our Diamond Cover program in the UK, and 3-5 year global warranties via localized distributor networks.
Made in Britain
Verifiable UK manufacturing compliance with full traceability across optical, electronic, and mechanical sub-assemblies.
3D Marking Standard
3-axis dynamic focus optical galvos built directly into system architecture—eliminating costly add-ons.
15+ Year Chassis Life
Heavy-duty structural aluminum chassis built to withstand harsh 24/7 industrial factory floor environments.
ISO 9001 Certified
Strict quality control processes, rigorous optical beam profiling, and safety verification on every machine shipped.
Full CE Compliance
Certified Class 1 laser enclosures featuring dual-channel safety interlocks, optical safety glass, and active safety relays.
Industry Experience0+Years Engineering
Global Systems Installed0+Satisfied Facilities
Global Distribution Network0Supported Countries
UK Diamond Warranty0yrComprehensive Protection
Procurement Guidance
Global Buyer FAQs: MOPA Fiber Laser Marking Machines
Engineering answers to common queries asked by procurement teams, process engineers, and factory managers when evaluating MOPA fiber laser machines.
What is the technical difference between MOPA fiber lasers and standard Q-switched fiber lasers?
A MOPA (Master Oscillator Power Amplifier) fiber laser decouples pulse duration from pulse frequency. While Q-switched fiber lasers have fixed pulse durations (typically 80ns-120ns), a MOPA laser allows engineers to independently select pulse widths from 2ns to 500ns and frequencies up to 4000kHz. This precision control eliminates heat accumulation, preventing burning on plastics and maintaining stainless steel corrosion resistance.
How does variable pulse duration enable corrosion-free black annealing on stainless steel?
Black annealing requires heating the surface of stainless steel to grow a uniform oxide film without vaporizing or gouging the metal matrix beneath. Short MOPA pulse durations (4ns to 16ns) deliver the required peak power to grow the optical oxide layer while preventing collateral heat from bleeding into the base metal, keeping the protective chromium passivation layer fully intact.
Can Lotus MOPA fiber lasers create permanent color marks on titanium and stainless steel?
Yes. By fine-tuning pulse width, frequency, optical hatch pitch, and scan speed, the MOPA laser generates precise, repeatable oxide film thicknesses on titanium (Grade 5) and stainless steel. Differing oxide layer thicknesses create thin-film optical light interference, producing consistent hues (blue, yellow, magenta, green) without chemicals or dyes.
Why is dynamic 3D marking superior to mechanical Z-axis positioning?
Conventional laser marking machines use flat field F-theta lenses, requiring manual or motorized Z-stage movements to adjust focus between parts of different heights. Lotus Meta 3D MOPA systems utilize a high-speed dynamic 3-axis galvo expander optic. The focus plane dynamically adjusts mid-scan in real time across curved, stepped, or slanted surfaces, drastically reducing cycle time and ensuring uniform line width across 3D objects.
What software capabilities and industrial networking protocols are supported?
Lotus Laser Meta MOPA workstations support wide CAD vector formats (DXF, AI, STEP, IGES) and image rasters. For industrial automation lines, our controllers interface seamlessly via OPC UA, TCP/IP, Ethernet/IP, and Modbus to automatically query database servers (SQL/ERP) for real-time dynamic serialization, 2D Data Matrix, and barcode generation.
What warranty coverage and spare parts support do international buyers receive?
In the UK, Lotus Laser Systems offers up to 10-Year Diamond Cover. For international buyers across 46 supported countries, systems carry a standard 3 to 5-year comprehensive warranty backed by regional certified distributor technical hubs and immediate dispatch of optical/electronic spare parts directly from our UK factory.
Can we test our parts and materials before purchasing a MOPA laser system?
Absolutely. Lotus Laser Systems operates a dedicated applications laboratory in Basildon, UK. We invite buyers to submit sample components for complimentary testing. Our application specialists will analyze your material under specialized optical equipment, establish optimal laser parameters, and provide a full lab sample report prior to commitment.
