In modern industrial manufacturing—ranging from aerospace fasteners and medical surgical tools to automotive control modules and consumer electronic housings—single-part laser marking systems represent a major operational bottleneck. Operators spend more time opening enclosure doors, swapping individual components, and re-triggering laser cycles than the laser spends actually engraving. A modern Large Format Batch Laser Marker fundamentally re-engineers this workflow by integrating high-speed galvo scanning heads onto motorized linear XY movement stages, allowing hundreds of parts arranged on large matrix trays to be processed seamlessly in a single automated cycle.
When procuring industrial laser equipment, manufacturing engineers must balance beam quality, optical field limits, and loading duty cycles. Standard galvo laser markers are limited by the physical focal constraints of F-Theta objective lenses. Expanding the marking field of a single lens beyond 300mm × 300mm causes severe beam spot distortion (coma and astigmatism) and parallax angle degradation at the outer field edges, ruining fine 2D DataMatrix code legibility. Lotus Large Format Batch Laser Markers overcome this optical physics boundary by utilizing dynamic XY step-and-repeat positioning.
| Operational Metric | Standard Single-Part Galvo System | Lotus Large Format Batch Laser Marker (Meta-XY Series) |
|---|---|---|
| Effective Working Envelope | 110mm × 110mm to 300mm × 300mm max | 600mm × 600mm to 1200mm × 800mm (Extendable) |
| Spot Diameter Consistency | Degrades at outer optical field boundaries | Uniform sub-30µm spot diameter across all tray coordinates |
| Operator Door Cycle Overhead | High (door opens/closes for every part) | Minimal (door opens once per 100–500 part tray) |
| Parts Marked per Operator Hour | 120 to 250 parts/hour | 1,200 to 3,500+ parts/hour |
| Data Serialization Handling | Manual file loading per part trigger | Automated database query (SQL/ERP) per matrix coordinate |
| Multi-Height Component Trays | Requires manual Z-axis refocusing | Dynamic 3D optical Z-focusing per part position |
Engineered and manufactured in the UK by Lotus Laser Systems, our Meta series platforms deliver uncompromising accuracy, robust mechanical stability, and tailored laser wavelengths for global procurement demands.

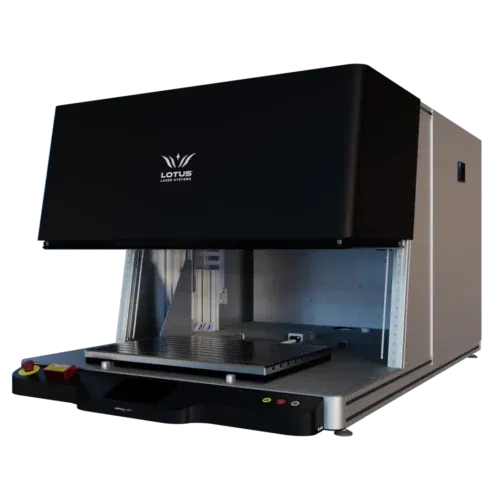

Featuring an ultra-rigid motorized XY gantry table and heavy-duty steel base, the Meta-XY XL accommodates massive multi-component tray layouts up to 1000mm × 600mm. Available with MOPA Fiber, UV, or CO2 laser sources.

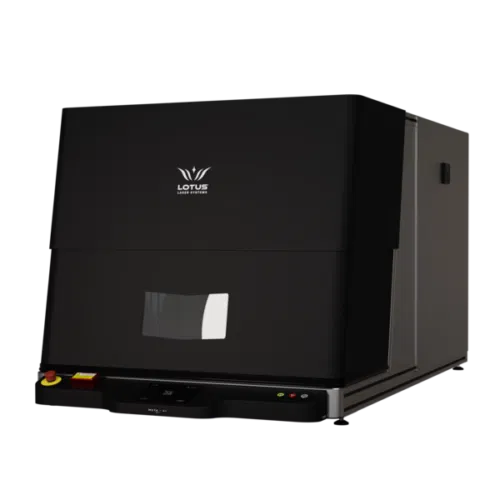

The standard Meta-XY platform is designed for high-density production environments requiring rapid step-and-repeat marking over a 600mm × 400mm work area with fully enclosed Class 1 laser safety protection.

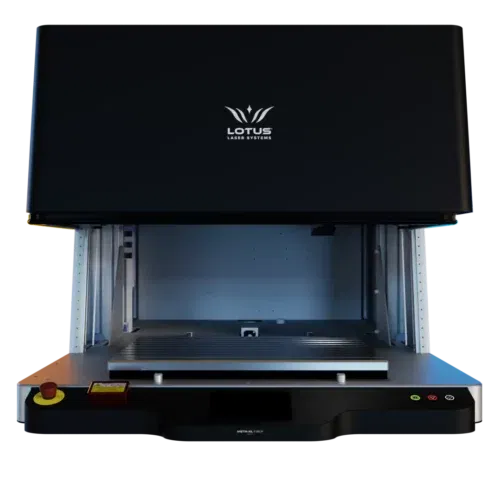

Equipped with 3D dynamic optical focusing as standard, this MOPA fiber workstation marks stepped, curved, and complex multi-level batch parts without requiring physical Z-stage movement between parts.
Utilizing a 355nm ultraviolet laser wavelength, this system performs damage-free cold marking on heat-sensitive polymers, medical catheters, glass vials, and delicate semiconductor components in bulk batch trays.
As global manufacturing organizations restructure supply chains to meet stringent traceability mandates and offset labor shortages, procurement officers and operational executives are prioritizing smart, scalable laser automation systems. Here are the key purchasing trends transforming the industrial marking landscape:
Global buyers no longer want rigid, high-cost mechanical nest fixtures for every component variant. Modern Large Format Batch Laser Markers are increasingly specified with high-resolution overhead camera vision systems (Galvo-integrated or gantry-mounted). These vision systems automatically scan the entire tray bed, detect part orientation offset ($X, Y, \theta$), and dynamically shift laser marking vector coordinates in real-time, eliminating misalignments.
Traceability standards such as US FDA UDI for medical devices and ISO 26262 for automotive electronics mandate unique barcode serialization for every single component. Procurement teams are specifying batch markers capable of querying manufacturing databases (SAP, Siemens MindSphere, Oracle ERP) directly via OPC-UA or TCP/IP protocols to pull serial batches automatically for each tray position.
To maximize capital equipment utilization, contract manufacturers require versatile batch equipment. Rather than purchasing separate machines for plastic tags and aluminum data plates, enterprise buyers are selecting modular large format enclosures designed to accept interchangeable MOPA Fiber and UV laser heads or dual-head scanning setups on a single high-speed linear gantry.
Environmental, Social, and Governance (ESG) criteria are driving procurement decisions away from ink-jet coders, chemical etching, and micro-percussion stamping. Fiber and UV Large Format Batch Laser Markers offer zero consumable ink/solvent costs, low electrical power consumption, and permanent non-degradable marks that survive severe chemical washing and autoclave sterilization environments.
As industrial automation advances toward autonomous smart factories, laser hardware and optical delivery mechanisms are undergoing rapid technological evolution. Lotus Laser Systems continues to lead this innovation curve from our UK headquarters.
Replacing traditional belt-driven or lead-screw stages with direct-drive linear motors allows XY travel speeds exceeding 2.5 m/s with sub-micron positioning accuracy, cutting non-marking index moves between tray positions down to milliseconds.
Integrating Optical Coherence Tomography (OCT) allows the laser system to map the 3D surface elevation profile of warped or un-machined casting batch parts in real-time, feeding instantaneous dynamic Z focus corrections to the 3D galvo head.
The miniaturization of ultra-fast femtosecond laser sources enables non-thermal laser ablation at high repetition rates, allowing high-density medical stent and micro-electronic batches to be laser marked with zero thermal dissipation.
Deploying dual or quad synchronized galvo scan heads on a single large-format gantry bridge multiplies batch processing output exponentially, enabling simultaneous marking on adjacent tray quadrants.
In-line grading tools analyze code contrast, cell size, and matrix geometry immediately post-marking, ensuring every marked batch meets ISO/IEC 15415 standards before the enclosure door opens.
IoT-connected laser control modules analyze optical power output, galvo temperature drift, and mechanical axis vibration to schedule preventive maintenance before costly production downtime occurs.
Selecting the correct laser source configuration is vital to achieving optimal mark contrast, zero structural heat-affected zones (HAZ), and fast cycle times. Use our engineering guidelines below to configure your Large Format Batch Laser Marker.
| Material Substrate | Recommended Wavelength | Process Result | Target Batch Applications |
|---|---|---|---|
| Stainless Steel / Titanium | MOPA Fiber (1064nm) | Corrosion-resistant black anneal / deep engraving | Surgical instruments, aerospace fasteners, turbine blades |
| Anodized Aluminum | MOPA Fiber / Standard Fiber | High-contrast white ablation of anodized layer | Data plates, rating tags, electronic enclosures |
| Heat-Sensitive Plastics (ABS, PC, PE) | UV Cold Laser (355nm) | Photochemical color change, zero melting or burn edge | Automotive switches, medical connectors, electronic keys |
| Glassware & Microfluidics | 3D UV Laser (355nm) | Micro-crack free high resolution frosted marking | Pharmaceutical vials, syringe barrels, luxury cosmetics |
| Organics, Wood & Acrylic | CO2 Galvo Laser (10.6µm / 9.3µm) | Thermal vaporizing, deep surface etching and cutting | Gaskets, wooden packaging boxes, display panels |
With over 30 years of continuous laser engineering heritage based in Essex, United Kingdom, Lotus Laser Systems (Laserite Ltd.) is not a reseller or re-packager. We design, build, program, and validate complete laser marking, engraving, and automation systems in-house under strict quality management frameworks.
Every Large Format Batch Laser Marker is assembled under our accredited ISO 9001 quality system and rigorously tested to surpass CE electrical, EMC, and laser safety safety standards (BS EN 60825-1).
We stand behind our industrial design integrity by offering up to 10-Year Diamond Cover warranty protection in the UK, alongside 3 to 5 year comprehensive international warranties supported by authorized distributor networks in 46 countries.
Before any capital commitment is made, our UK applications team executes rigorous sample testing on your exact client components, delivering comprehensive cycle time studies, microscopic surface analysis, and barcode verifier reports.
While competitors charge premium add-on fees for 3D capability, dynamic 3-axis optical focus control is integrated as standard across most Lotus Meta platforms, enabling zero-compromise multi-height batch marking.
As modern laser machinery integrates directly into corporate networks, our systems and operational practices are Cyber Essentials certified, protecting your manufacturing network from digital vulnerabilities.

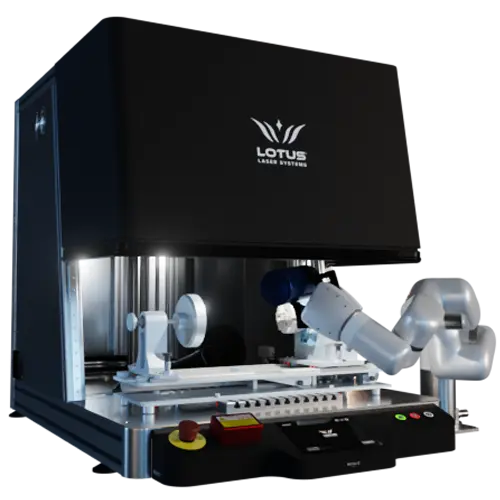

From automated data plate loader magazines to COBOT loading cells and continuous conveyor integration, our specialized R&D team builds complete turn-key automated laser cells tailored to your exact factory footprint.
Discover how global manufacturers transformed their production throughput and eliminated scrap rates by deploying Lotus Meta laser workstations.
By switching to Lotus Meta laser platforms, Good Empire scaled high-precision volume contract engraving, achieving consistent multi-part quality and high operational reliability.
After evaluating international laser vendors for over 15 years, Arton Products standardized on Lotus UV laser technology to achieve ultra-fine, crack-free frosted logos on high-volume glassware batches.
Replaced low-cost import laser markers with a heavy-duty Lotus Meta-C workstation, solving severe thermal drift problems and securing contracts for aerospace part serialization.
Detailed technical answers for industrial engineers, procurement specialists, and operations leaders evaluating high-volume laser marking equipment.
Traditional galvo laser markers attempt to expand field size using large F-Theta optical lenses, which causes severe beam distortion, spherical aberration, and focal spot expansion at the field edges. A Lotus Large Format Batch Laser Marker (such as our Meta-XY series) uses a hybrid positioning approach: a high-precision motorized ball-screw XY linear gantry moves the galvo laser scan head over designated grid sectors of the tray. Because the laser scan head operates only within its optimal optical field center for each step-and-repeat coordinate, every single component across the entire 600mm x 600mm (or larger) bed receives identical laser spot energy density, sub-30 micron beam focus, and distortion-free 2D DataMatrix code legibility.
In a standard single-part laser marking setup, an operator opens a manual or pneumatic safety door, swaps one component in a fixture, closes the door, presses cycle start, waits 3 to 5 seconds for marking, and repeats. The non-productive door opening and loading overhead routinely consumes 70% to 80% of total operator shift time. With a Large Format Batch Laser Marker, the operator loads a tray holding 100 to 500 parts in a single operation. The laser runs continuously for 15 to 45 minutes uninterrupted. This reduces operator labor overhead per part by up to 85%, eliminates operator fatigue, and enables one operator to manage multiple automated laser workstations simultaneously.
Yes. Lotus Meta systems feature dynamic 3D optical Z-axis focusing as standard. Unlike static 2D laser markers that require mechanical vertical stage indexing between different part heights, our 3D dynamic optical focusing module adjusts the laser beam focal plane dynamically in real-time ($Z$-range up to 80mm optical depth). Whether your component tray contains stepped parts, sloped automotive bezels, or cylinders, our control software automatically adjusts focus per matrix location without slowing down the batch cycle.
Laser selection depends entirely on substrate material physics:
• MOPA Fiber Lasers (1064nm): Ideal for all metals (stainless steel, titanium, aluminum, brass) and engineered opaque plastics. MOPA technology allows variable pulse duration adjustment (2ns to 500ns) to create corrosion-resistant dark anneals on stainless steel without surface erosion or high-contrast white marks on anodized aluminum.
• UV Cold Lasers (355nm): Essential for heat-sensitive polymers, medical catheters, flame-retardant resins, microelectronics, and glass. The photochemical 355nm energy breaks molecular bonds directly without micro-cracking, melting, or thermal charring.
• CO2 Galvo Lasers (10.6µm): Designed for organic materials, wood, acrylic, textiles, coated packaging card, and glass surface frosting.
Lotus software control suites support direct database connectivity via SQL, ODBC, OPC-UA, and TCP/IP network sockets. During a batch run on a multi-part tray, the software automatically queries your production database to fetch unique serialization numbers, batch manufacturing codes, timestamps, or UDI DataMatrix strings mapped to each specific matrix coordinate ($X_n, Y_n$). Closed-loop verification protocols prevent duplicate number generation, and integrated vision cameras can scan and record verified code grades back into your ERP system post-marking for full ISO compliance.
All standard Lotus Meta Large Format Batch Laser Markers are engineered as fully enclosed Class 1 laser systems in accordance with BS EN 60825-1 and CE regulations. This means no special protective eyewear or dedicated laser safety rooms are required during routine production. Our enclosures feature interlocked safety circuits, dual-channel safety relays, anti-pinch vertical door sensing, and certified laser safety glass viewing windows. For custom integration into automated robotic cells, Class 4 OEM open-frame configurations are also available with safety light curtain interfaces.
To validate your process with zero technical risk, click the "Get a Quote" button on this page to connect with our UK applications laboratory. You can ship sample parts or component matrix trays directly to our Essex headquarters. Our applications team will test various laser wavelengths, optimize pulse parameters, generate high-resolution surface microscopy reports, provide precise cycle time calculations per tray, and return the physically marked samples for your quality engineering team to inspect.
