Featured Marking, Engraving & Cutting Systems
Precision-engineered laser equipment optimized for inline product coding, high-contrast serialization, deep metal engraving, and high-speed material processing.

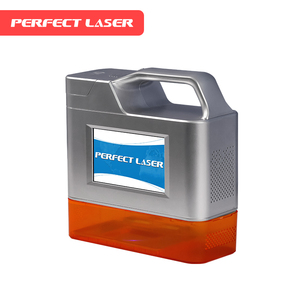

Perfect Laser- Portable Handheld Enclosed Mini Automatic DIY Portable Laser Engraver/ Mini Laser Marker

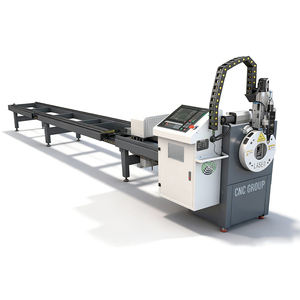

Simple Laser Tube and Pipe Cutting Machine

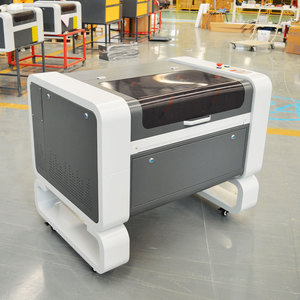

2025 New 4060 50w 60w 80w 100w Co2 Laser Engraving Machine for Wood Acrylic 6040 CO2 Laser Cutting Machine 100w

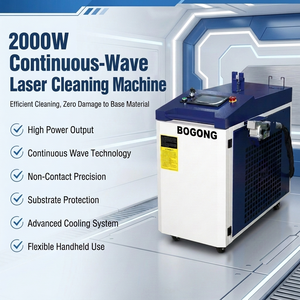

BOGONG 2000W CW Laser Cleaning Machine Handheld Industrial Rust Removal Floor Coating Surface Treatment for Construction Metal

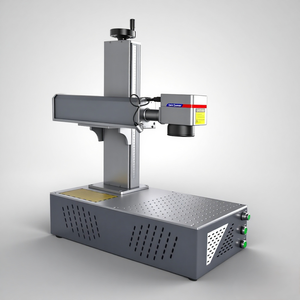

100W 200W 300W Fiber Laser Marking Machine Deep Engraving 2D 2.5D 3D For Metal With JPT Mopa M7 Laser Source

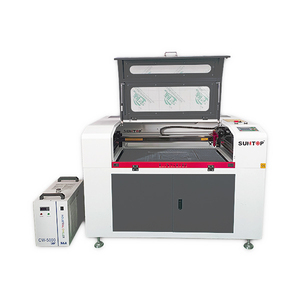

Easy-to-operate Acrylic Laser Engraving Machine, 60/80/100/130/150/180/200W, 6040/9060/1390, CO2 Laser Engraver and Cutter

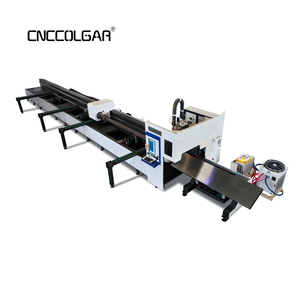

CNCColgar 12kW Fiber Laser Tube Cutting Machine 360mm Chuck For 13m Metal Tubes

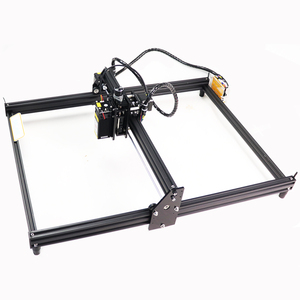

NEJE 3 Max V2 40W Diode Laser Engraver Desktop CNC Machine Control App High-Accuracy Acrylic Cutting AI/LAS Support Air-Cooled
The Paradigm Shift in Kuala Lumpur’s Manufacturing Corridors: Transitioning to Inline Industrial Laser Coding
As Greater Kuala Lumpur and the surrounding Klang Valley manufacturing zones—spanning Shah Alam, Subang Jaya, Puchong, Petaling Jaya, and Nilai—accelerate their alignment with Malaysia's New Industrial Master Plan (NIMP 2030), operational efficiency standards have evolved dramatically. Legacy Continuous Inkjet (CIJ) and Thermal Transfer Overprinting (TTO) systems are increasingly recognized as primary drivers of unnecessary operational expenditure, unscheduled downtime, and environmental non-compliance.
Traditional ink-based coders rely heavily on volatile organic solvent fluids, requiring continuous replenishment, routine nozzle cleaning, filter changes, and hazardous waste disposal. In tropical industrial environments like Kuala Lumpur, where ambient shop-floor temperatures frequently exceed 32°C with relative humidity levels over 80%, ink-based systems suffer from chronic nozzle clogging, solvent evaporation imbalances, and blurred codes.
Our OEM/ODM Inline Industrial Laser Coding Machines represent a permanent, non-contact engineering solution. By utilizing high-speed digital galvanometers and direct photonic material interaction, our inline laser coders eliminate consumable costs entirely, delivering crisp 2D DataMatrix codes, GS1-128 barcodes, lot numbers, expiration dates, and Halal traceability serializations directly onto moving production lines at speeds exceeding 1,200 meters per minute.
Zero Consumable Overhead
Completely replaces thermal ribbons, inks, and toxic solvents. Achieves ROI within 8 to 14 months of continuous operation across high-speed FMCG lines.
Indelible Tamper-Proof Quality
Photonic ablation or chemical color shifting creates codes resistant to moisture, abrasion, chemical solvents, and tropical temperature fluctuations.
Smart Factory Integration
Supports EtherNet/IP, PROFINET, Modbus TCP, and TCP/IP protocols for direct PLC handshake, optical encoder tracking, and dynamic cloud database pairing.
Tailored OEM/ODM Inline Modular Architecture
We engineer inline laser head modules, dynamic mounting gantry systems, and control electronics specifically designed to fit existing conveyor belts, rotary blow molders, cartoners, and vertical form-fill-seal (VFFS) machinery.
Mark-On-The-Fly (MOTF) Synchronized Galvo Systems
Our inline laser coding heads integrate dual-axis digital galvo scanners backed by high-resolution optical rotary encoders. The system dynamically measures substrate speed in real-time, calculating positional displacement matrixes to ensure zero distortion on accelerating, decelerating, or jittering production conveyors.
OEM Modular Mechanical Integration
For machine builders and system integrators serving the Southeast Asian market, we offer customized OEM laser heads with 360-degree rotatable focal lenses, compact IP65-rated stainless steel enclosures, and articulated mounting arms.
- ✔ Dual-chamber thermal isolation for high-humidity resistance
- ✔ Quick-release optical conduits and IP67 industrial umbilical cables
- ✔ Custom focal lengths (f=100mm to f=420mm) for broad marking fields
ODM Firmware & Software Localization
Our internal R&D team provides complete ODM software customization, allowing seamless integration with localized ERP, MES, and WMS software stacks across Malaysian manufacturing plants.
- ✔ Multilingual touchscreen HMI (English, Bahasa Melayu, Simplified Chinese)
- ✔ Auto-serialization engines for JAKIM Halal tracking compliance
- ✔ Integrated vision verification (OCR/OCV) feedback protocol
Inline Wavelength Matrix for Diverse Substrates
Selecting the optimal optical wavelength is vital to achieving crisp contrast without structural degradation or burn-through on thin film substrates.
| Laser Source Type | Wavelength | Target Substrates | Marking Mechanism | Typical Line Speed |
|---|---|---|---|---|
| MOPA Fiber Laser | 1064 nm | Stainless Steel, Anodized Aluminum, Brass, HDPE, ABS, Polyamide | Photothermal Ablation, Surface Oxidation, Foaming | Up to 900 m/min |
| UV Cold Laser | 355 nm | White HDPE, PET Bottles, Glass Vials, Thin Films, Medical Plastics | Photochemical "Cold" Micro-Disruption (No Heat) | Up to 600 m/min |
| CO2 Galvo Laser (10.6µm) | 10.6 µm | Cardboard Packaging, Paper Labels, Wood, Rubber, Coated Glass | Thermal Surface Engraving / Vaporization | Up to 1,200 m/min |
| CO2 Galvo Laser (9.3µm) | 9.3 µm | Thin PET Beverage Bottles, Polypropylene (PP) Containers | Resonant Wavelength Plastic Melting (No Micro-Punctures) | Up to 1,000 m/min |
Localized Application Scenarios across Kuala Lumpur & Selangor
Engineered to satisfy demanding production environments across key industrial parks in the Greater Klang Valley region.
High-Speed FMCG & Beverage Bottling
Integration directly onto rotary blow-molding and liquid filing lines in Shah Alam. Utilizing 9.3µm CO2 and 355nm UV laser coders to etch expiration dates, batch numbers, and 2D QR codes onto ultra-thin PET bottles and cap seals without causing structural micro-leaks.
Pharma & Medical Device Serialization
Compliant with strict international drug traceability guidelines and ISO 13485 standards. UV cold lasers generate high-contrast micro-codes on PVC/ALU blister foils, medical plastic tubes, and glass ampoules without thermal degradation of sensitive active pharmaceutical ingredients.
Automotive Parts & Metal Machining
MOPA Fiber laser coders integrated into automated robotic welding and machining cells in Puchong. Producing deep, permanent VIN codes and DataMatrix codes on cast aluminum engine components, stamped steel brackets, and gear hubs capable of enduring shot-blasting and heat treatments.
Key Trends Driving Inline Laser Adoption in Malaysia
1. National Industry 4.0 (Industry4WRD) Mandate
Malaysian manufacturers are rapidly digitizing factory floors under the Ministry of Investment, Trade and Industry (MITI) directives. Inline laser coding machines act as foundational data input nodes, transmitting real-time operational data, mark validation status, and serial numbers straight into cloud-connected Manufacturing Execution Systems (MES).
2. Strict Halal Digital Traceability Standards
Kuala Lumpur stands as a global epicenter for Halal food and pharmaceutical production. The integration of dynamic inline laser coding enables brand owners to print indelible, tamper-proof QR codes containing direct verification links to JAKIM Halal certificates, protecting supply chains against counterfeiting across global export markets.
3. ESG & Sustainable Carbon Reduction Goals
Leading multinational corporations operating in Klang Valley industrial hubs are eliminating Single-Use Plastics (MEK ink cartridges) and hazardous solvent emissions (VOCs) to meet stringent Corporate Sustainability Reporting Directive (CSRD) requirements. Laser coding provides a 100% clean, non-polluting marking methodology.
4. Automated Vision Inspection Synergy
Modern high-speed lines in Sepang and Nilai couple inline laser coders with high-speed CMOS camera systems. The precise beam positioning of digital galvo scanners guarantees consistent code placement, enabling automated OCR software to achieve 99.99% read rates at line speeds over 600 BPM.
Engineering Excellence & Enterprise Reliability
Combining rigorous international manufacturing standards with responsive localized technical support across Southeast Asia.
ISO 9001 & CE Compliance
Manufactured under stringent quality control protocols. Every laser system undergoes 72-hour continuous thermal burn-in testing prior to delivery.
Advanced 3D Marking Standard
Integrated 3-axis dynamic focal control allows seamless coding across curved bottles, inclined packaging surfaces, and variable-height components without mechanical adjustments.
Local Engineering SLA
Backed by specialized field application engineers in Kuala Lumpur offering rapid spare-parts deployment, sample testing labs, and on-site integration support.
Procurement & Integration FAQ for Klang Valley Engineers
Upgrade Your Kuala Lumpur Production Line Today
Eliminate ink consumable expenses, stop unscheduled maintenance downtime, and ensure 100% digital traceability with our OEM/ODM inline laser coding systems. Contact our regional applications team for sample marking tests and factory audits.
