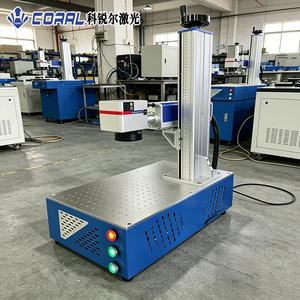

CORAL HG-ZM-A-D30 3D Mopa Desktop Laser Marker Easy To Operate For Mixed Aluminum And Stainless Steel Materials

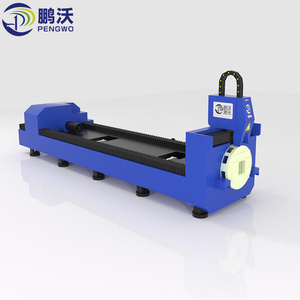

3000W Automatic Feeding CNC Industrial Laser Pipe Cutting Machine Metal Tube Fiber Laser Cutter AI Graphic Direct Manufacturer
CO2 Laser Engraving Cutting Machine 6090 for Acrylic Wood Leather Fabric Rubber CNC Laser Engraver Nonmetal Cutting Equipment

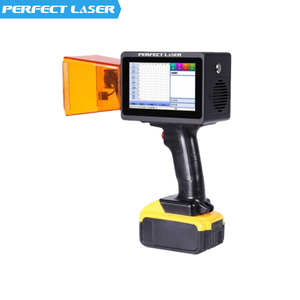

Perfect Laaser Handheld Portable Metal Acrylic Gold Sliver Rubber Wood Marker Mini Fiber Laser Marking Machine with LCD Screen
G.WEIKE 150 Watts 400 Watt Acrylic CO2 Laser Cutting Machine High Power Industrial Laser System
30+
Years Engineering Heritage
46+
Global Export Markets
< 15µm
Ultra-Fine Spot Diameter
100%
SMEMA / Industry 4.0 Ready
Executive Industry Whitepaper
Next-Generation OEM/ODM PCB Laser Marking Solutions for United Kingdom Manufacturers
A comprehensive technical analysis on achieving zero-defect component traceability, zero-HAZ cold laser processing, and seamless SMT inline integration under UKCA and ISO standards.
Chapter 1: The Evolution of PCB Traceability in the UK Electronics Sector
The electronics manufacturing ecosystem in the United Kingdom—spanning high-reliability aerospace tech hubs in the Midlands, automotive electrification corridors in the North East, and advanced medical tech clusters across South East England—is undergoing a rapid Industry 4.0 transformation. As UK Contract Electronics Manufacturers (CEMs) and Original Equipment Manufacturers (OEMs) adapt to stringent supply chain requirements, traditional marking techniques such as inkjet printing, mechanical scribing, and adhesive barcode labels are increasingly failing to meet modern operational demands.
Inkjet codes suffer from chemical degradation during aggressive solvent wash processes, while paper and polyimide labels risk peeling off under extreme thermal cycling inside aerospace or automotive control modules. Furthermore, mechanical engraving introduces micro-cracks into delicate FR-4 substrates and high-density interconnect (HDI) layers. Modern UK electronics exporters require permanent, non-contact, high-contrast, and chemical-resistant marking directly onto circuit boards. This is where OEM/ODM PCB Laser Marker solutions serve as the foundational architecture for end-to-end component traceability.
Information Gain Insight: According to IPC-A-610 standards, high-reliability electronics demand serialization codes that remain 100% readable through 10+ cycles of wave soldering, ultrasonic solvent baths, and thermal shock testing (-40°C to +150°C). Direct laser marking achieves lifetime code permanence without adding foreign chemical contaminants to the SMT assembly line.
Chapter 2: Physics of Wavelength Selection: 355nm Cold UV vs. 1064nm MOPA Fiber vs. CO2
Selecting the precise laser wavelength is the single most critical decision when configuring an industrial PCB laser marker exporter pipeline for UK buyers. Choosing the wrong laser source leads to copper trace damage, solder mask burning, structural delamination, or illegible DataMatrix codes. As a premier OEM/ODM exporter, we specialize in three core laser architectures tailored to specific circuit board material profiles:
355nm UV Cold Laser (Recommended)
Utilizes ultra-short ultraviolet wavelengths to break chemical bonds directly (photodecomposition) rather than generating heat. Delivers zero Heat Affected Zone (HAZ), making it perfect for green, black, white, and red solder masks, flexible printed circuits (FPC), and sensitive IC chips.
1064nm MOPA Fiber Laser
Features independently adjustable pulse duration (2ns to 500ns) and frequency up to 4000kHz. Engineered for high-speed dark marking on aluminum-core substrates, copper ground planes, and rigid shield cans without penetrating underlying trace paths.
10.6µm CO2 Galvo Laser
Highly effective for deep ablation on thick ceramic substrates, raw FR-4 fiberglass panels, and heavy solder resist coats where high-volume processing speed is prioritized for non-critical industrial assemblies.
Data Visualization & Metrics
PCB Marking Technology Benchmark Comparison
A rigorous engineering comparison evaluating operational parameters across laser wavelengths and legacy marking methods for UK electronics manufacturing lines.
| Evaluation Parameter | 355nm UV Cold Laser | 1064nm MOPA Fiber | 10.6µm CO2 Laser | Legacy Inkjet / Label |
|---|---|---|---|---|
| Heat Affected Zone (HAZ) | Near Zero (< 2µm) | Moderate (10 - 25µm) | High (> 35µm) | N/A (Chemical) |
| Mark Contrast on FR-4 Solder Mask | Ultra-High Contrast | Material Dependent | Ablative / Low Contrast | High (When New) |
| Minimum Readable 2D DataMatrix Size | 0.5mm x 0.5mm | 1.2mm x 1.2mm | 2.0mm x 2.0mm | 3.0mm x 3.0mm |
| Chemical Wash & Solvent Resistance | 100% Permanent | 100% Permanent | 100% Permanent | Degrades / Dissolves |
| Copper Substrate Protection | Flawless (No Damage) | Requires Fine Tuning | Risk of Delamination | Non-Damaging |
| Consumable Costs & Environmental Impact | Zero Consumables / Eco | Zero Consumables / Eco | Zero Consumables / Eco | High Ink/Solvent Waste |
| UKCA / CE Compliance Integrity | Full Compliance | Full Compliance | Full Compliance | VOC Emission Risks |
Chapter 3: UK Localized Application Scenarios & Industry Standards
As a seasoned exporter catering specifically to the United Kingdom's manufacturing landscape, our OEM/ODM custom laser solutions are engineered to meet strict UK regulatory frameworks and sector-specific requirements:
Aerospace & Defence (BS EN 9100 / Def Stan)
UK aerospace Tier-1 suppliers mandate permanent micro-DataMatrix codes on mission-critical avionics PCB assemblies. Our 355nm UV laser systems mark ultra-fine 0.5mm codes compliant with AS9100 standards without causing micro-fissures in multi-layer polyimide or PTFE high-frequency boards.
Automotive EV Components (IATF 16949)
With major UK electric vehicle manufacturing expansion in Sunderland and the West Midlands, battery management system (BMS) PCBs require high-contrast tracking marks. Our MOPA fiber laser markers generate corrosion-resistant black markings on aluminum plates and copper busbars.
Medical Devices (NHS / MHRA Compliance)
Under the UK Medical Devices Regulations (UK MDR 2002) and MHRA guidelines, electronic medical implants and diagnostic circuit boards must feature Unique Device Identification (UDI) marks that withstand autoclaving and aggressive chemical sterilization routines.
Chapter 4: SMT Line Integration: SMEMA Protocols & Industrial IoT (Industry 4.0)
Standalone desktop engravers are insufficient for modern high-volume UK SMT (Surface Mount Technology) assembly lines. Our custom OEM/ODM export solutions integrate advanced inline conveyor systems equipped with standardized SMEMA (Surface Mount Equipment Manufacturers Association) interface hardware and software protocols.
Featuring integrated high-resolution CCD camera vision systems, our inline PCB laser markers automatically locate fiducial marks on individual boards or array panels (matrix boards), dynamic focal correction across 3-axis galvo head systems, and execute real-time code verification against ISO/IEC 15415 standards. Furthermore, our machines connect directly with enterprise MES (Manufacturing Execution Systems) and ERP platforms via OPC-UA and TCP/IP, ensuring every serial number, batch code, and timestamp is queried and validated in real time before board release.
Why Partner With Us
Uncompromising Quality & Comprehensive OEM/ODM Capabilities
Built upon 30+ years of industrial laser innovation, our systems deliver unrivaled operational uptime, strict safety compliance, and tailored OEM export workflows for the United Kingdom.
ISO 9001 & UKCA / CE Certified
Manufactured under rigorous ISO 9001 quality management procedures. Fully compliant with UKCA and CE safety directives, featuring Class 1 dual interlock enclosures and BOFA-compatible fume extraction ports.
3D Galvo & Automated PCB Loaders
Equipped with 3-axis dynamic focusing galvo heads that maintain crisp focus across stepped, curved, or recessed multi-level PCB architectures without manual Z-axis height adjustment.
Custom OEM/ODM Engineering Workflow
From custom chassis dimensions, automated COBOT loading cells, to personalized software GUIs localized in English, our engineering team tailors every machine to your exact factory specifications.
Frequently Asked Questions
Expert Guidance for UK PCB Laser Marker Buyers
Clear, direct answers regarding technical capabilities, UK regulatory compliance, export logistics, and SMT integration.
Why should UK electronics manufacturers choose 355nm UV laser over CO2 or Fiber for PCB marking?
355nm UV lasers operate via "cold processing" photodecomposition, breaking atomic bonds within solder masks and plastics without generating excessive thermal energy. Unlike CO2 lasers (which ablate material and can burn FR-4) or Fiber lasers (which require careful power tuning to avoid damaging copper circuits), UV lasers produce clean, high-contrast, zero-HAZ marks down to 0.5mm DataMatrix codes without compromising structural substrate integrity.
Are your OEM/ODM laser markers compliant with UKCA and UK Electrical Safety Standards?
Yes. All laser marking equipment exported to the United Kingdom is engineered to meet UKCA (UK Conformity Assessed) and CE regulations. Systems feature fully enclosed Class 1 safety housing, safety interlock switches, emergency stop circuitry, and EMC compliance for seamless installation inside UK industrial facilities.
How do your inline PCB laser markers integrate with existing SMEMA SMT production lines?
Our inline PCB laser systems feature standard hardware SMEMA connectors and software protocols. They communicate directly with upstream loaders and downstream reflow/inspection systems. The onboard conveyor automatically adjusts width via software control, supporting standard PCB sizes from 50mm x 50mm up to 510mm x 460mm panel arrays.
Can the laser marking system verify DataMatrix code readability in real-time?
Absolute integrity is ensured through our optional integrated CCD vision camera system. After laser marking, the vision sensor scans the 2D DataMatrix code, grades it according to ISO/IEC 15415 quality standards, and sends a PASS/FAIL signal to the MES database before the conveyor moves the PCB to the next SMT station.
What warranty coverage and technical support options are available for UK importers?
We provide comprehensive international warranty coverage (typically 3 to 5 years globally, with 10-year structural frame guarantees). Technical support is backed by remote diagnostic engineering, rapid spare parts delivery, and regional technical support partners serving the UK and Western Europe.
Can we request sample testing on our own custom PCB materials before placing an OEM order?
Yes, absolutely. We encourage UK buyers to send sample circuit boards (green, black, white FR-4, ceramic, flexible FPC, or metal-core). Our applications laboratory will perform wavelength testing, produce micro-marks, generate contrast reports, and return processed samples alongside a comprehensive lab report completely free of charge.
